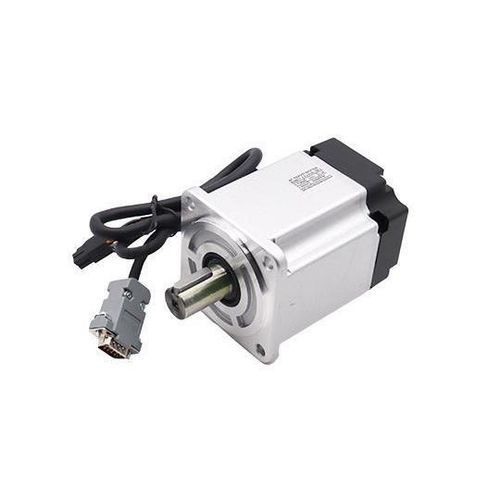

Servomotore brushless 80B series

220 VIP655 poli

Features:17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness.Speed: Good high-speed performance, the rated speed can generally reach 3000 rpm, and the maximum speed can reach 6000 rpm.Adaptability: Strong overload resistance, can withstand a load three times the rated torque, particularly suitable for applications with instantaneous load fluctuations and requiring rapid start-up.Stability: Smooth operation at low speed, during low-speed operation there will be no step-like operation phenomenon as with stepper motors. Suitable for applications with high-speed response requirements.Timeliness: The dynamic response time of the motor's acceleration and deceleration is short, generally within tens of milliseconds.Comfort: Heat and noise are significantly reduced.Product Specifications:ModelVoltage (VAC)Current (A)Torque (Nm)BrakeWeight (kg)Body Length (mm)808 ST-C02430-2B12204.52.39Without brake102808 ST-C02430-2B1-Z2204.52.39With brake128808 ST-C03230-2B12205.93.2Without brake113808 ST-C03230-2B1-Z2205.93.2With brake140Motor Specifications:Model80 BST-C02430-2B180 BST-C02430-2B1-Z80 BST-C03230-2B180 BST-C03230-2B1-ZRated voltage (V)220220220220Rated power (W)75075010001000Rated current (A)4.54.55.95.9Rated torque (N·m)2.392.393.23.2Rated speed (rpm)3000±10%3000±10%3000±10%3000±10%Maximum speed (rpm)5000±10%5000±10%5000±10%5000±10%Back EMF constant (V/Krpm)34.334.33636Line resistance (Ω)1.451.450.920.92Line inductance (mH)4.954.953.43.4Rotor inertia (10⁻¹kg·m²)1.481.481.931.93Torque constant (Nm/A)0.530.530.540.54Electrical time constant (ms)3.413.413.73.7BrakeWithout brakeWith brakeWithout brakeWith brakeBody length (L mm)102128113140Rotor pole pairs5PInsulation classClass FProtection gradeIP65––IP5Assembly Drawing:Encoder: 17-bit and 23-bit absolute value photoelectric encoder, high range and high responsiveness.Speed: Rated speed up to 3000 rpm, max speed up to 6000 rpm.Overload: Can withstand load three times the rated torque.Stability: Smooth operation at low speed, no step-like operation as with stepper motors.Dynamic response: Acceleration/deceleration response time within tens of milliseconds.Noise/heat: Significantly reduced.Technical Specifications:Rated voltage: 220VRated power: 750W / 1000WRated current: 4.5A / 5.9ARated torque: 2.39Nm / 3.2NmRated speed: 3000±10% rpmMax speed: 5000±10% rpmBack EMF constant: 34.3 / 36 V/KrpmLine resistance: 1.45 / 0.92 ΩLine inductance: 4.95 / 3.4 mHRotor inertia: 1.48 / 1.93 (10⁻¹kg·m²)Torque constant: 0.53 / 0.54 Nm/AElectrical time constant: 3.41 / 3.7 msBrake: With/without brakeBody length: 102 / 128 / 113 / 140 mmRotor pole pairs: 5PInsulation class: FProtection grade: IP65 / IP5
