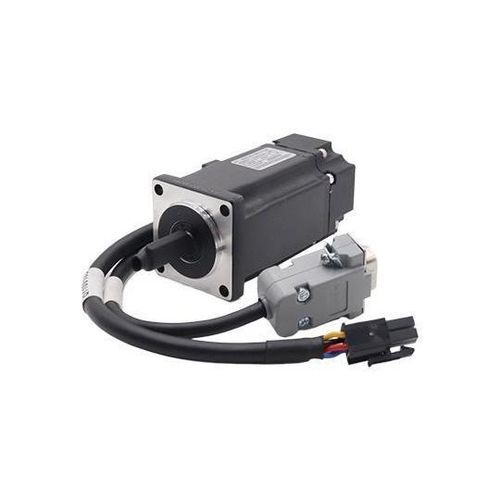

Servomotore passo-passo 40B series

brushless220 Vad alta velocità

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness;Speed: Good high-speed performance, the nominal speed can generally reach 3000 rpm, the maximum speed can reach 6000 rpm;Adaptability: Strong overload resistance, can withstand a load three times the rated torque, particularly suitable for situations with instantaneous load fluctuations and requiring rapid start-up;Stability: Smooth operation at low speed, during low-speed operation there will be no step operation phenomenon similar to that of stepper motors. Suitable for situations with high-speed response requirements;Timeliness: The dynamic response time of the motor's acceleration and deceleration is short, generally within tens of milliseconds;Comfort: Heat and noise are significantly reduced.Product SpecificationsModelVoltage (VCA)Current (A)Torque (Nm)Weight (kg)Length (mm)40BST-M00330220V1.390.320.4889.840BST-M00330Z220V1.390.320.75137.8Motor SpecificationsModel40BST-M00130 (Standard)40BST-M00130Z (With brake)40BST-M00330 (Standard)40BST-M00330Z (With brake)Rated Power (W)5050100100Rated Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cmDetent Torque0.159 N·m / 1.62 kcf·cm0.159 N·m / 1.62 kcf·cm0.318 N·m / 3.25 kcf·cm0.318 N·m / 3.25 kcf·cmMax Instantaneous Torque0.56 N·m / 5.71 kcf·cm0.56 N·m / 5.71 kcf·cm1.11 N·m / 11.3 kcf·cm1.11 N·m / 11.3 kcf·cmRated Speed (rpm)3000300030003000Max Speed (rpm)6000600060006000Rated Current (A)0.77 (0.86 with oil seal)0.77 (0.86 with oil seal)1.18 (1.24 with oil seal)1.18 (1.24 with oil seal)Detent Current (A)0.690.691.11.1Max Instantaneous Current (A)2.502.503.923.92Torque Constant0.2325 Nm/A / 2.372 kcf·cm/Asame0.2885 Nm/A / 2.944 kcf·cm/AsameBack EMF Constant24.37×10⁻³ V/r/minsame30.23×10⁻³ V/r/minsameResistance (OH)60.5460.5431.7131.71Inductance (mH)53.3853.3837.137.1Mechanical Time Constant (SM)2.963.171.852.11Electrical Time Constant (SM)0.8820.8821.171.17Rotor Inertia0.0288 gf·cm·s²0.0309 gf·cm·s²0.053 gf·cm·s²0.060 gf·cm·s²Rated Torque to Inertia Ratio9.128.5119.8817.46Outline DrawingTechnical Specifications / Features17-bit and 23-bit absolute value photoelectric encoderHigh responsiveness and high rangeNominal speed up to 3000 rpm, max speed up to 6000 rpmStrong overload resistance (up to 3x rated torque)Suitable for rapid start and load fluctuation environmentsSmooth low-speed operation, no stepper-like steppingShort dynamic response time (tens of milliseconds)Reduced heat and noise
