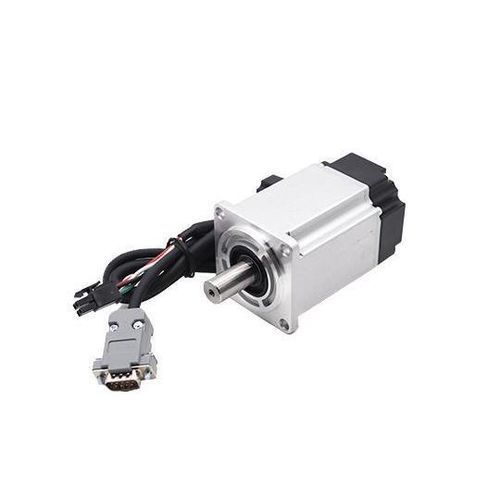

Servomotore AC 60B series

220 Vcon encoderin acciaio inossidabile

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness;Speed: Good high-speed performance, the nominal speed can generally reach 3000 rpm, the maximum speed can reach 6000 rpm;Adaptability: Strong overload resistance, can withstand a load three times the rated torque, particularly suitable for situations with instantaneous load fluctuations and requiring rapid start-up;Stability: Smooth operation at low speed, during low-speed operation there will be no step-like operation phenomenon as with stepper motors. Suitable for situations with high-speed response requirements;Timeliness: The dynamic response time of the motor's acceleration and deceleration is short, generally within tens of milliseconds;Comfort: Heat and noise are significantly reduced.Product SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)60BST-C00630-2B12201.60.64Without brake74.560BST-C00630-2B1-Z2201.60.64With brake9860BST-C01330-2B12202.61.27Without brake9360BST-C01330-2B1-Z2202.61.27With brake116.5Motor SpecificationsMotor Model60BST-CO0630-2B160BST-CO0630-2B1-Z60BST-CO1330-2B160BST-CO1330-2B1-ZRated Voltage (V)220220220220Rated Power (W)200200400400Rated Current (A)1.61.62.62.6Rated Torque (N·m)0.640.641.271.27Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10%Max Speed (rpm)3600±10%3600±10%3600±10%3600±10%Line Back EMF Constant (V/Krpm)25253131Line Resistance (Ω)5.85.84.054.05Line Inductance (mH)9.89.86.56.5Moment of Inertia (10^3kg·m^2)0.280.280.520.52Torque Constant (Nm/A)0.40.40.490.49Electrical Time Constant (ms)1.691.691.61.6BrakeWithout brakeWith brakeWithout brakeWith brakeBody Length (L mm)74.59893116.5Encoder: 17-bit and 23-bit absolute value photoelectric encoderNominal speed: up to 3000 rpmMaximum speed: up to 6000 rpmOverload resistance: up to 3 times rated torqueDynamic response time: within tens of millisecondsReduced heat and noiseVoltage: 220VRated power: 200W / 400WRated current: 1.6A / 2.6ARated torque: 0.64Nm / 1.27NmBody length: 74.5mm to 116.5mm (depending on model and brake)
