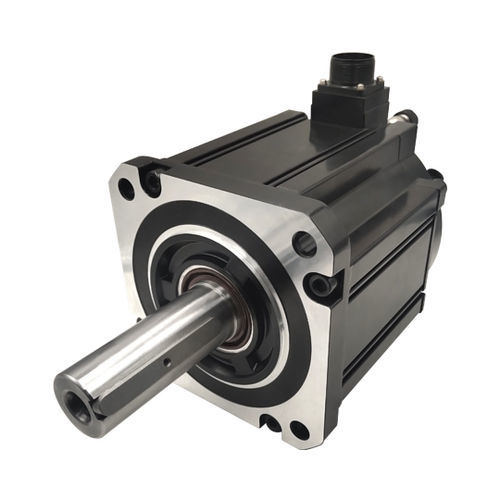

Servomotore trifase 180B series

380 VIP65ad alta coppia

Product Features:17-bit/23-bit absolute value photoelectric encoder, with high-end and high responsiveness characteristics.Speed: High-speed performance is good. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm.Adaptability: Strong overload resistance, able to bear three times the rated torque load. Particularly suitable for occasions with load fluctuations and requiring quick starts.Stability: Runs smoothly at low speeds, without the step-like running phenomenon similar to stepper motors. Suitable for occasions with high-speed response requirements.Timeliness: The dynamic response time for acceleration and deceleration of the motor is short, generally within tens of milliseconds.Comfort: Heat generation and noise are significantly reduced.Motor Specifications:Motor Model180BST-M18615180BST-M28415180BST-M35015180BST-M48015Rated Power (W)2900440055007500Rated Line Voltage (V)380380380380Rated Line Current (A)10.014.517.823.0Rated Speed (rpm)1500150015001500Rated Torque (Nm)18.628.43548Peak Torque (Nm)547187.596Back EMF (V/1000min)137.5153172170Torque Constant (N.m/A)1.861.951.982.09Rotor Inertia (kg·m²)4.4X10⁻⁶6.6X10⁻⁶10.2X10⁻⁶14.6X10⁻⁶Rotor Inertia with Brake (kg·m²)5.9X10⁻⁶8.0X10⁻⁶11.0X10⁻⁶15.6X10⁻⁶Winding (Phase) Resistance (Ω)1.10.90.620.42Winding Inductance (mH)15.213.910.98.7Electrical Time Constant (SM)13.815.417.515.9Maximum Speed (rpm)2500200020002000Encoder TypePhotoelectric Pulse Encoder/Absolute Value Encoder/Resolver Motor Insulation ClassClass F Protection ClassIP65 Operating EnvironmentAmbient Temperature: –20°C – 40°C; Relative Humidity: ≤90% (non-condensing) Weight Winding TerminalTerminal Color – U (Red), V (Yellow), W (Blue), PE (Green-Yellow) Quantity of Output Wires4 Incremental Encoder Connector (15-pin)Terminal Numbers: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1Terminal Leads: 5V, 0V, A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-, PE Absolute Value Encoder Connector (7-pin)Terminal Numbers: 2, 3, 4, 6, 7, 10Terminal Leads: E-, E+, SD-, 0V, SD+, +5V, PE L – Without brake176200237283L – With brake224248285331Shaft Diameter LR7979113113Shaft Diameter S35(-0.01 – 0)35(-0.01 – 0)42(0 – 0.016)42(0 – 0.016)Keyway Length QK60609090Keyway Width W10101212Shaft End Thread MM12 Depth 25 Technical Specifications / Features:17-bit/23-bit absolute value photoelectric encoderHigh responsiveness and high-end performanceRated speed up to 3000 rpm, max speed up to 6000 rpmStrong overload resistance (up to 3x rated torque)Stable low-speed operation, no step-like runningShort dynamic response time (tens of ms)Significantly reduced heat and noiseRated voltage: 380VProtection class: IP65Insulation class: FMultiple models: 180BST-M18615, 180BST-M28415, 180BST-M35015, 180BST-M48015
