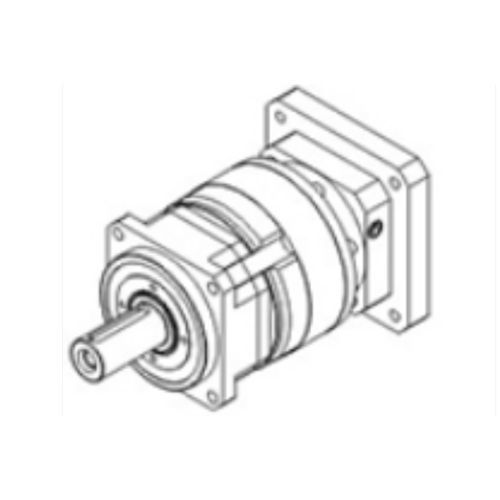

Riduttore planetario P142 series

coassialead albero cavocon flangia

The output planet carrier of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a wide space inside the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The machining and completion process is adopted to ensure extremely high coaxiality.Dimensional drawing of the reducerMain technical parametersLevelFirst stageSecond stageReduction ratio3/4/5/812/15/16/20/25/32/40/64Body length290334.5Maximum radial force10000N12200NMaximum axial force16000N21000NFull load efficiency≥96%≥94%Weight16.5Kg22.5KgService life ≥20000 hoursRated input speed2500rpm2500rpmMaximum input speed4500rpm4500rpmMotor power3000W3000WGear accuracy grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25°~ +90°–25°~ +90°Protection gradeIP65IP65Lubrication methodLong-term action lubricationLong-term action lubricationInstallation methodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical specifications / FeaturesIntegrated nut eliminates axial playSuper-strong integrated structure for high torsional rigidityHigh radial and axial load capacityExtremely high coaxialityReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage)Body length: 290 mm (1st stage), 334.5 mm (2nd stage)Max radial force: 10000N (1st), 12200N (2nd)Max axial force: 16000N (1st), 21000N (2nd)Full load efficiency: ≥96% (1st), ≥94% (2nd)Weight: 16.5Kg (1st), 22.5Kg (2nd)Service life: ≥20000 hours (2nd stage)Rated/max input speed: 2500/4500 rpmMotor power: 3000WGear accuracy: 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection: IP65Lubrication: Long-term actionInstallation: Flange
