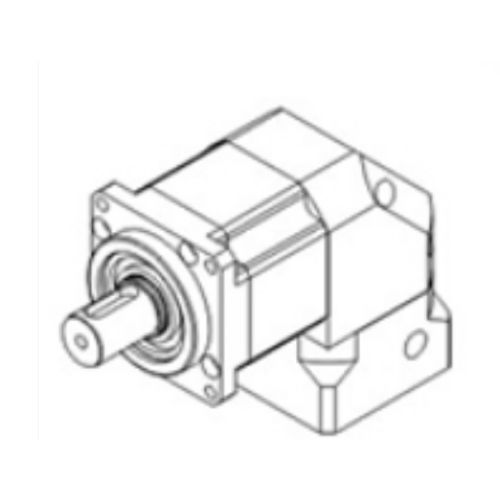

Riduttore planetario WPF60 series

ad assi ortogonaliad albero cavodi precisione

The output planet carrier of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a wide space inside the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The processing and completion process is adopted to ensure extremely high coaxiality.Dimensional drawing of the reducer:LevelFirst stageSecond stageThird stageReduction ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body length150.5166.5182.5Maximum radial force400N500N800NMaximum axial force300N390N700NFull load efficiency≥94%≥92%≥88%Weight2.0Kg2.3Kg2.6KgService life≥20000 hours≥20000 hours≥20000 hoursRated input speed3000rpm3000rpm3000rpmMaximum input speed8000rpm8000rpm8000rpmMotor power400W400W400WGear accuracy grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25°~ +90°–25°~ +90°–25°~ +90°Protection gradeIP65IP65IP65Lubrication methodLong-term action lubricationLong-term action lubricationLong-term action lubricationInstallation methodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / Features:Integrated nut to eliminate axial playSuper-strong integrated structure for high torsional rigidityHigh radial and axial load capacityExtremely high coaxialityReduction ratios: 3 to 1000 (varies by stage)Body length: 150.5mm to 182.5mmMax radial force: up to 800NMax axial force: up to 700NFull load efficiency: up to 94%Weight: 2.0Kg to 2.6KgService life: ≥20000 hoursRated/max input speed: 3000/8000 rpmMotor power: 400WGear accuracy: 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection: IP65Lubrication: Long-term actionInstallation: Flange
