Riduttore planetario WPF42 series

ad assi ortogonaliad albero cavocon flangia

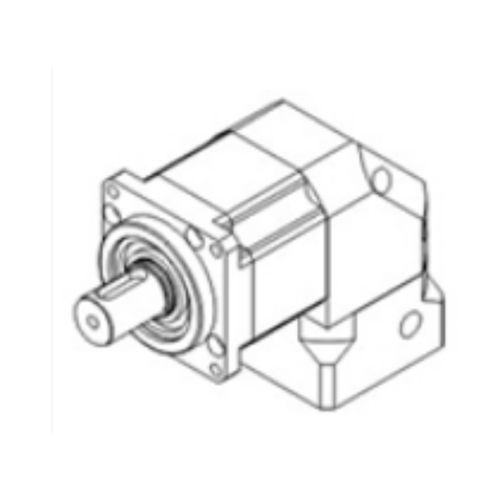

The output planet carrier of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a wide space inside the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. The processing and completion process is adopted to ensure extremely high coaxiality.Dimensional drawing of the reducer:LevelFirst stageSecond stageReduction ratio4/5/816/20/25/32/40Body length72.284.2Maximum radial force280N320NMaximum axial force200N240NFull load efficiency≥90%≥86%Weight0.7Kg0.9KgService life≥20000 hours≥20000 hoursRated input speed2500rpm3000rpmMaximum input speed4500rpm6000rpmGear accuracy grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25°~ +90°–25°~ +90°Protection gradeIP65IP65Lubrication methodLong-term lubricationLong-term lubricationInstallation methodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / Features:Integrated nut to eliminate axial playFront and rear bearings widely spaced for high rigiditySuper-strong radial and axial load capacityHigh coaxiality ensured by precise processingReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2 mm (1st), 84.2 mm (2nd)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7Kg (1st), 0.9Kg (2nd)Service life: ≥20000 hoursRated input speed: 2500rpm (1st), 3000rpm (2nd)Max input speed: 4500rpm (1st), 6000rpm (2nd)Gear accuracy: 6 GB/T10095 – 2008Operating temperature: –25°~ +90°Protection grade: IP65Lubrication: Long-term actionInstallation: Flange
