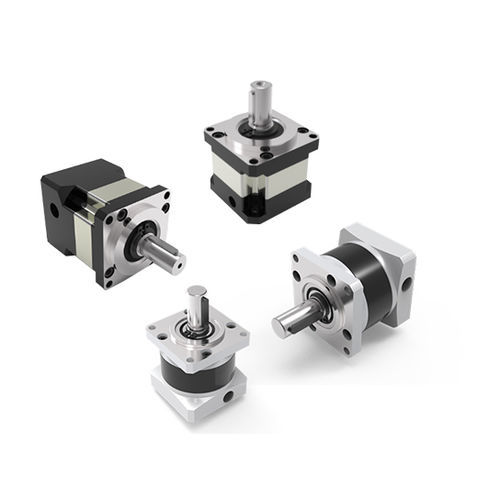

Riduttore planetario PF160 series

coassialead albero cavo

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical ParametersLevelFirst stageSecond stageThird stageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Maximum Radial Force10000N12200N20000NMaximum Axial Force16000N21000N36000NFull load Efficiency≥96%≥94%≥90%Weight17.5Kg23.5Kg27.5KgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMaximum Input Speed4500rpm4500rpm5000rpmMotor Power3000W3000W3000WGear Precision Grade6 GB/T10095-20086 GB/T10095-20086 GB/T10095-2008Operating Temperature-25° ~ +90°-25° ~ +90°-25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-acting LubricationLong-acting LubricationLong-acting LubricationInstallation MethodFlangeFlangeFlangeTechnical Features / SpecificationsIntegrated nut design for eliminating axial clearanceLarge span front and rear bearing distributionHigh torsional rigidity and load-carrying capacityHigh coaxiality due to one-time processingMultiple reduction ratios availableHigh efficiency (up to 96%)Service life ≥ 20,000 hoursProtection grade: IP65Long-acting lubricationFlange installation
