Sistema di telegestione NMSX1

Overview

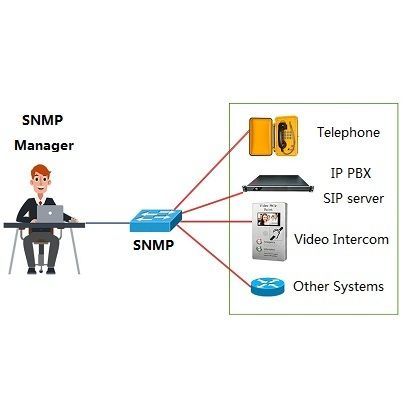

The NMS server software is based on a BS architecture. The installation and operation environment is a Linux server and it is accessed through a web browser WEB-GUI. The system performs network management on all devices in the system based on the SNMP protocol.

Managed objects

• IP PBX
• Recorder
• Office telephone
• Subway station telephone
• Tunnel telephone
• All telephones registered to the system

Management functions

• Map navigation to quickly locate the location of each phone terminal
• Real-time view of the health status of each managed object
• Immediate reporting of any alarms in terminals, IP PBX or recorder
• Real-time monitoring and health detection with alarm report lists

Software and licenses

• Software Model number: S- NMS-X1-0.0.4-13
• Description: Network Management System software
• License SKU: KNNMS-X1-SNMP-0.0.4-13
• License description: KNNMS-X1 Network Management system license
• Licence SKU for management authority: 28 account number
• For dispatcher Agent: KNNMS-X1-SNMP-0.0.4-13-AG28
• For management Admin: KNNMS-X1-SNMP-0.0.4-13-AD28

Server hardware

• Hardware SKU: KNSERBER-HW1

Interface

• Trunking gateway: interface to trunking radio system
• VoIP gateway: interface to other telephone systems
• SIP protocol: interface to other PA system
• SIP protocol: interface to other SCADA system

Application
The SNMP unified network management system is mainly used in large telephone dispatching systems. Typical deployment scenarios include subways, stations and industrial construction sites; the system can manage groups of terminals in batches or manage single terminals.

Caractéristiques / spécifications techniques

• Product model (commercial designation): NMSX1
• Software model number: S- NMS-X1-0.0.4-13
• License SKU: KNNMS-X1-SNMP-0.0.4-13
• Agent license SKU: KNNMS-X1-SNMP-0.0.4-13-AG28
• Admin license SKU: KNNMS-X1-SNMP-0.0.4-13-AD28
• Licence for management authority: supports 28 accounts
• Server hardware SKU: KNSERBER-HW1
• Platform: Linux server
• Access: Web browser (WEB-GUI)
• Protocol: SNMP for device management; SIP for integrations
• Management capabilities: device health monitoring, alarms, map-based terminal location, real-time monitoring
