Utensile di diagnostica di monitoraggio TSS-1000

in lineadi accesso alla rete

Features

• KNTECH Telephone Management System is designed for control office to monitor the Emergency Call Point in real time to ensure all the phone stations are in good working status.
• Allows the control office to know immediately if one telephone is broken and to dispatch maintenance personnel.

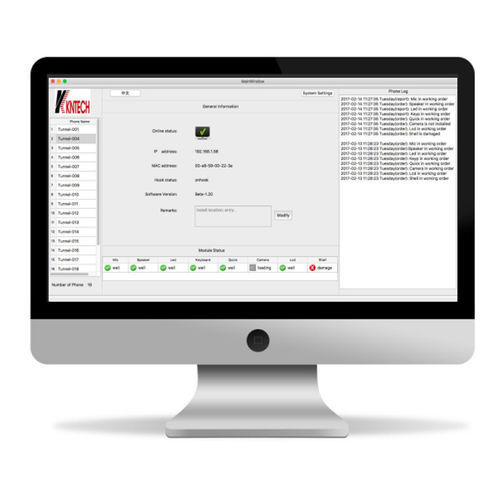

• TSS-1000 operates as a Windows software package running on a PC with Microsoft Windows.
• Consists of one Windows software + the Emergency Call Point KNSP-19. All Emergency Call Point devices have monitoring and self-diagnostic functionality including automatic self-test of microphone and loudspeaker with configurable schedule for automatic tests.
• At least every 24 hours, all Emergency Call Points send their health/fault status to the TSS-1000 control room to display the status; this data is available to relevant monitoring subscribers for maintenance purposes.
• Details on symbols, icons and color codes to identify monitored object status are provided for easy operation.
• The system is highly reliable, with simple installation and operation; runs by executing the TSS-1000 on your computer.
• Phone call has higher priority while performing a self-checking task.

Remote testing and programmable diagnostics

• Self monitoring and diagnose functions.
• The telephone reports to the TSS-1000 in real time when the following happens:
• Keypad or emergency call button gets stuck.
• Handset microphone or receiver broken, or handset cord broken.
• Ring indicator LED broken.
• Buzzer broken.
• Telephone box opened.

System composition

• TSS-1000 Windows software (control/monitoring application).
• Emergency Call Point units (model KNSP-19) with built-in diagnostic/self-test capability.

Specification
Model: KNSP-19 Telephone with Diagnostic System
Construction: Robust aluminium alloy die-cast body
Dimensions(W*H*D): 320*205*120mm
Weight: 5.7kg
Operating Temperature: -25°F to +158°F / -40°C to +70°C
Relative Humidity: Up to 95% non-condensing
Protection: IP66, vandal-resistant and water-resistant design
Communication: Full duplex 2-way handset communication
Call Control Signaling: SIP Info (DTMF), RFC 2833 (DTMF)
Audio Codes: G.711, G.722, G.729
Power: Power over Ethernet, IEEE802.3af, Class 0; Local power 12V DC; Idle 2W, Max 10W
Auxiliary Contacts: 1 Aux Output, dry contact
Contact Ratings: Load: resistive load; Rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; Rated carry current: 1 A; Max switching voltage: 125 VAC, 60 VDC; Max switching current: 1 A
Network: 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols: Power over Ethernet (PoE, 802.3af), WLAN (IEEE 802.3af), Network Access; Control (IEEE 802.1x), STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
Programming: Non-volatile flash memory programming and configuration through Web GUI
Management and Operation: DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
Echo cancellation code: G.167 / G.168
Keypad: 0~9 free dial, last number redial, speed dial 1 and speed dial 2

Caractéristiques / spécifications techniques

• Model: KNSP-19 Telephone with Diagnostic System
• Construction: Robust aluminium alloy die-cast body
• Dimensions (W*H*D): 320*205*120 mm
• Weight: 5.7 kg
• Operating temperature: -40°C to +70°C (-25°F to +158°F)
• Relative humidity: Up to 95% non-condensing
• Protection: IP66, vandal-resistant and water-resistant design
• Communication: Full duplex 2-way handset
• Call control signaling: SIP Info (DTMF), RFC 2833 (DTMF)
• Audio codecs: G.711, G.722, G.729
• Power: PoE IEEE802.3af (Class 0), local 12 V DC; Idle 2 W, Max 10 W
• Auxiliary contacts: 1 aux output (dry contact)
• Network: 10/100 BaseTX Ethernet, RJ45
• IP protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
• Programming: Flash memory programming via Web GUI
• Management: DHCP/static IP, remote auto software upgrade, centralized monitoring, status LED
• Echo cancellation: G.167 / G.168
• Keypad: digits 0–9, last number redial, two speed dials
