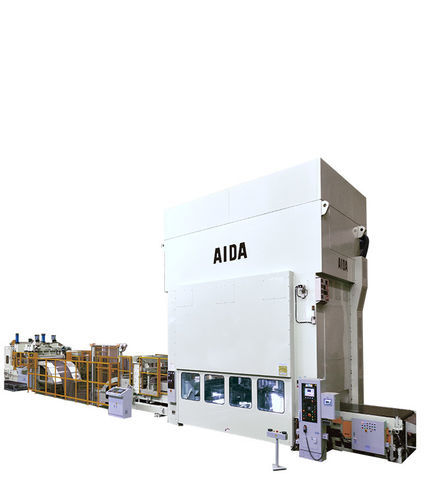

Pressa meccanica PMX-S4 series

di formaturadi stampaggioper lamiera

Description
The PMX-S4 Series is composed by high-precision, high-rigidity, straight side 4-point presses for progressive die applications. The highly rigid tie-rod frame coupled with bearings designed with minimal overall bearing clearances keep breakthrough to a minimum, which reduces noise, enables high long-term accuracy and extends die life. The PMX-S4 presses are manufactured with the slide suspension point centers positioned in very close proximity to the tie rod centers; the optimal structure for multi process forming, that enable widely-spaced left and right suspension points and heavy-duty eccentric loading capabilities. Moreover, the built-in dynamic counterbalances reduce vibration and enable stable high-speed production.

Key features

• Manufactured with forged eccentric shafts on a very low deflection tie rod frame with dynamic balancing of slide and upper die
• Built-in dynamic counterbalances reduce vibration and enable stable high-speed production
• The wide spacing between the points enables the PMX-S4 presses to effectively withstand off-center loads
• The highly rigid frame can withstand the progressive stamping of thick sheet metal
• The symmetrical front-to-back and left-to-right frame maintains high dynamic accuracy

Main Specifications (table)
Model headers: PMX-S4-2000 (2 variants), PMX-S4-3000 (3 variants), PMX-S4-4000 (2 variants), PMX-S4-5000 (2 variants), PMX-S4-6000 (1 variant)

Variant: 1 | 2 | 1 | 2 | 3 | 1 | 2 | 1 | 2 | 1
Capacity (kN)*: 2000 | 2000 | 3000 | 3000 | 3000 | 4000 | 4000 | 5000 | 5000 | 6000
Stroke length (mm): 200 | 200 | 200 | 200 | 200 | 200 | 200 | 300 | 250 | 250
Strokes per minute (min^-1): 50~120 | 50~120 | 40~100 | 40~100 | 40~100 | 30~80 | 30~80 | 30~60 | 30~70 | 30~70
Die height (mm): 475 | 475 | 550 | 550 | 550 | 650 | 650 | 700 | 700 | 750
Slide area (L/R x F/B mm): 1550×830 | 1850×880 | 1850×880 | 2150×1000 | 2450×1200 | 2150×1150 | 2450×1150 | 2150×1150 | 2450×1150 | 2450×1250
Bolster area (L/R x F/B mm): 1550×950 | 1850×950 | 1850×1000 | 2150×1000 | 2450×1200 | 2150×1250 | 2450×1250 | 2150×1250 | 2450×1250 | 2450×1400
Max. upper die weight (kg): 1000 | 1000 | 1000 | 1500 | 1500 | 3000 | 3000 | 3000 | 3000 | 3000
Side opening (mm): 850×375 | 850×375 | 900×450 | 1020×450 | 1220×450 | 1170×450 | 1170×450 | 1170×550 | 1170×550 | 1270×650

Notes
*Available up to 16000 kN (per page note).

Caractéristiques / spécifications techniques

• Denomination commerciale (series): PMX-S4 Series
• Type: Mechanical 4-point straight side presses (transversal crankshafts)
• Press capacities: range from 2000 kN to 12000 kN (page note: available up to 16000 kN)
• Stroke length: typical values shown per model (see main specifications table)
• Strokes per minute: ranges depend on model/variant (example values: 50~120; 40~100; 30~80; 30~60; 30~70)
• Die height: examples per model given in main specifications table
• Slide and bolster areas: values per model given in main specifications table
• Max. upper die weight: up to 3000 kg for larger models
• Side opening dimensions: provided per model in main specifications table
• Construction highlights: forged eccentric shafts, low-deflection tie rod frame, minimal bearing clearances, slide suspension points close to tie rod centers, built-in dynamic counterbalances
