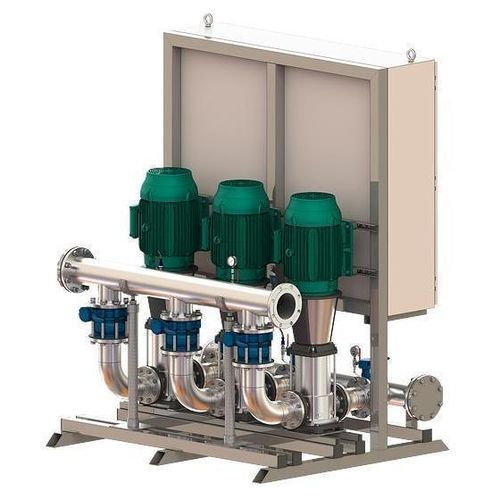

Booster centrifugo CO MVI series

ad acquadi CO2per potenza elettrica

Nome
CO MVI — Sistema di pressurizzazione idrica

Caratteristiche principali

• 1/3HP-100HP per pump (up to four pumps in parallel)
• Strong base support with close-fitting profile to maneuver through doorways
• Smaller footprint allows for installations into tight areas
• NSF/ANSI 61 & 372 certified systems, 304 stainless steel construction
• Full system kWH energy reporting
• Real-time diagnostics and remote monitoring
• Onboard ModBUS and optional BACnet & LonWorks interface
• Variable speed control per pump
• Adjustable low-pressure cut-out
• Balanced run time across all pumps

Tabella prodotti (esempi)
Denominazione del prodotto | Raccordo per tubi sul lato pressione (DNd) | Raccordo per tubi sul lato aspirante (DNs) | Numero delle pompe | Codice articolo
CO2 MVI-1SB-50-1-.75HP-304E-230V~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3354764
CO2 MVI-1SB-50-1-.75HP-304E-460V~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3355054
CO2 MVI-1SB-50-1-.75HP-304E-575V~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3355344
CO2 MVI-1SB-50-2-1.5HP-304E-230V~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3354765
CO2 MVI-1SB-50-2-1.5HP-304E-460V~3~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3355055
CO2 MVI-1SB-50-2-1.5HP-304E-575V~3~3 | 2" CLASS 150 | 2" CLASS 150 | 2 | 3355345

Chiave di lettura
Example: Wilo CO2 MVI-1SB-225-3/2-20HP-304E-230V~3
Wilo: Brand Name
CO: Product Family: Pressure Booster Systems (1 VFD Per Pump)
2: Number of Pumps
MVI: Series designation of pumps
1SB: Reduced Manifold (1 Standby Pump Required)
225: Nominal Flow Rate in US Gallons per Minute
-3: Number of Stages (Impellers in Series)
/2: Number of Trimmed Impellers
20HP: Horsepower
304: Stainless Steel Type
E: EPDM Elastomers
230V: Voltage
~3: Phase

Dati tecnici

• Fluid Temp Range: -4°F to 248°F (-20°C to 120°C) with a minimum of 32°F for domestic water
• Electrical Connections: 1~IN 3~208-230 OUT/3~208-230/460/575V
• Rated Pressure: 232/363/435 PSI
• Flange Connections: 150 or 300 Class flanges depending on booster working pressure
• TEFC motors standard

Materiali

• All 304 Stainless Steel Construction
• NSF/ANSI 61 Certified Systems
• EPDM/FKM Elastomers
• Mechanical Seal Options: Tungsten Carbide/EPDM, or optional Viton®/FKM

Funzionalità operative e connettività

• Full system energy (kWH) reporting
• Real-time diagnostics and remote monitoring
• Onboard ModBUS; optional BACnet and LonWorks
• Variable speed drive per pompa e controllo bilanciato dei tempi di funzionamento

caractéristiques / spécifications techniques

• Max. Flow: 3,160 GPM
• Max. Head: 989 feet
• Pompe supportate: fino a quattro pompe in parallelo
• Range potenza pompe: da 1/3HP a 100HP per pompa
• Costruzione: acciaio inossidabile 304
• Elastomeri: EPDM o FKM
• Opzioni tenuta meccanica: Tungsten Carbide/EPDM o Viton®/FKM
• Range temperatura fluido: -20°C a 120°C
• Connessioni elettriche e fasi: configurazioni per 208-230/460/575V, vers. monofase/trifase secondo modello
• Pressione nominale: fino a 435 PSI a seconda del modello
• Interfacce: ModBUS onboard; BACnet e LonWorks opzionali
