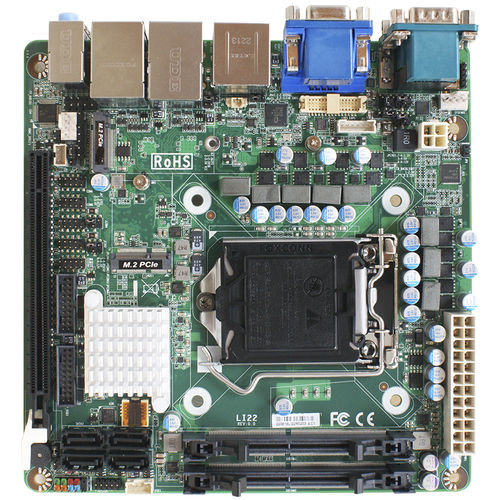

Chipset Intel® Comet Lake-S Q470E, supporta CPU LGA1200 (max 65W), DDR4 fino a 64GB
1. Il socket Intel® LGA1200 supporta processori Core di 10/11° generazione (max 65W)
2. Intel® Comet Lake-S Q470E
3. 2* DDR4 3200/2933MHz fino a 64GB
4. 1* Intel® i225-V 2,5 GbE, 1* Intel® i219-LM GbE
5. 1* chiave M.2 M (PCI-Ex4), 1* chiave M.2 E (CNVi/PCI-Ex1)
6. 4* SATA III (6Gb/s, supporto RAID 0/1/5/10), 1* slot PCI-E x16
7. 1* VGA, 1* HDMI, 1* DP, 1* LVDS/eDP
8. 2* RS232/422/485, 4* RS232, 10* USB3.2 (Gen1), 3* USB2.0
9. Supporto TPM2.0 integrato (LI22-Q470E2, opzionale)
10. 24 + 4 pin ingresso alimentazione ATX
11. Fattore di forma Mini-ITX (170x170 mm)
Segmenti di mercato supportati
√ Automazione industriale
Ambiente
Temperatura di funzionamento: 0 ~ 60°C
Temperatura di stoccaggio: -20 ~ 70°C
Umidità: 10% ~ 90% RH @40°C (senza condensa)
---
