Computer-on-module COM Express Compact PN-SOM-COMe-CT6-R8000
AMDAMD Ryzen™AMD Ryzen™ Embedded

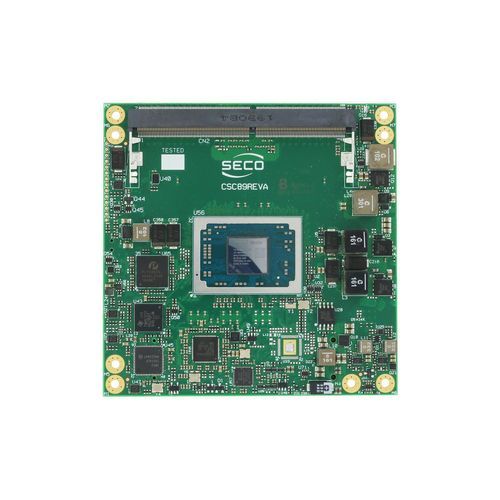

Computer-on-module COM Express Compact - PN-SOM-COMe-CT6-R8000 - SECO - AMD / AMD Ryzen™ / AMD Ryzen™ Embedded

Computer-on-module COM Express Compact - PN-SOM-COMe-CT6-R8000 - SECO - AMD / AMD Ryzen™ / AMD Ryzen™ Embedded - immagine - 2

Aggiungi ai preferiti

Confronta con altri prodotti

Maggiori informazioni sul sito di SECO

Caratteristiche

Fattore di forma: COM Express Compact
Processore: AMD, AMD Ryzen™, AMD Ryzen™ Embedded
Porte: Ethernet gigabit, HDMI, LVDS, SPI, DisplayPort, eDP, Ethernet, USB 3.0, USB Type-C, SATA, PCI Express, I2C, UART
Sistema operativo: Yocto, Windows 11 IoT Enterprise
Altre caratteristiche: embedded
Applicazioni: industriale

Descrizione

Panoramica
Modulo COM Express® 3.1 Tipo 6 Compact SOM-COMe-CT6-R8000 con processori AMD Ryzen™ Embedded 8000 Series (F07); form factor compatto 95 x 95 mm per applicazioni embedded industriali.

Punti principali

CPU AMD Ryzen™ Embedded 8000 Series (opzioni: Ryzen 7 Pro 8845HS, Ryzen 5 Pro 8645HS, Ryzen 7 Pro 8840U, Ryzen 5 Pro 8640U)
Grafica AMD RDNA 3 integrata (fino a 6 WGPs)
Memoria 2x slot DDR5-5600 SODIMM
Display Fino a 4 display indipendenti; DP 2.0, HDMI 2.1, eDP 1.5 o LVDS come opzioni di fabbrica
Connettività / IA XDNA Neural Processing Unit (NPU) integrata; supporto USB ad alta velocità e NBase-T Ethernet

Sicurezza e software

Secure Boot e TPM 2.0 opzionale per integrità di piattaforma
Aggiornamenti OTA e monitoraggio dispositivi per manutenzione remota
Supporto Clea OS (Yocto) e compatibilità Microsoft® Windows 11 IoT Enterprise
Supporto Docker per deployment applicativi containerizzati
Conformità certificata EN18031-1 per sistemi embedded

Specifiche tecniche

Descrizione Modulo COM Express® 3.1 Tipo 6 Compact, pinout F07 (95 x 95 mm)
Part number PN-SOM-COMe-CT6-R8000
Dettagli CPU AMD Ryzen™ Embedded 8000 Series: Ryzen 7 Pro 8845HS; Ryzen 5 Pro 8645HS; Ryzen 7 Pro 8840U; Ryzen 5 Pro 8640U
Memoria 2x slot DDR5-5600 SODIMM
Grafica AMD RDNA 3 integrata (fino a 6 WGPs)
Interfacce video Fino a 4 display indipendenti; 2x DDI (DP 2.0 / HDMI 2.1 / USB-C DP Alt Mode), 1x DDI (DP 2.0 / HDMI 2.1); eDP 1.5 o LVDS canale singolo/dual
Risoluzione video HDMI fino a 8K60; DP fino a 7680 x 4320 @60Hz; eDP/USB-C DP Alt fino a 3840 x 2160 @240Hz; LVDS fino a 1920 x 1200; max 4 x 3840 x 2160 @60Hz
USB Configurazioni comprendenti 2x USB 40 Gbps, 2x USB 10 Gbps, porte aggiuntive 10/5 Gbps e 8x Hi-Speed USB
PCIe Fino a 8x linee PCIe Gen4 (max 6 root ports); opzioni PEG 1x8 o 2x4 Gen4
Audio Interfaccia HD Audio; SoundWire
Seriale 2x porte seriali a 2 fili
Altre interfacce SPI, I2C, SMBus, LPC, TPM 2.0 (opzione di fabbrica), LID#/SLEEP#/PWRBTN#, watchdog, 4x GPI, 4x GPO, gestione ventola/termica
Alimentazione Main +12 VDC ±10%; rail ausiliari +5V_SBY, +3V_RTC
Sistema operativo Clea OS (Yocto) e Microsoft® Windows 11 IoT Enterprise
Temperatura operativa 0°C ÷ +60°C (commerciale)
Dimensioni 95 x 95 mm (COM Express Compact)
