Trasformatore di isolamento DYN11 K13 AL IP21a seccoper servizio internoIEC
Aggiungi ai preferiti
Confronta con altri prodotti
Caratteristiche
- Funzione
- di isolamento
- Struttura
- a secco
- Applicazioni
- per servizio interno
- Normativa
- IEC
- Altre caratteristiche
- a fattore k
- Potenza kVA
Min.: 30 kVA
(40,788635 hp)Max.: 1.600 kVA
(2.175,393848 hp)- Tensione primaria
400 V
- Tensione secondaria
400 V
- Frequenza
50 Hz
Descrizione
Breve descrizione

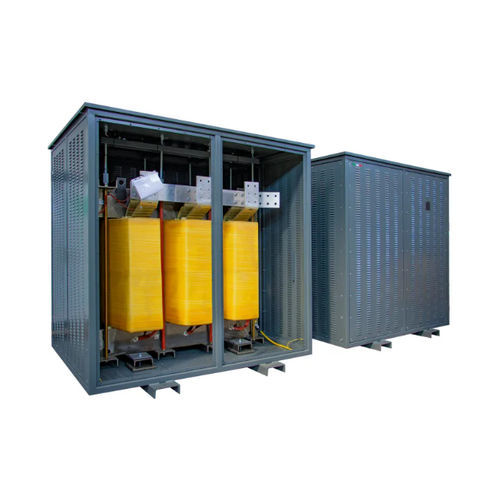

Il DYN11 K13 AL IP21 di Ortea Next è un trasformatore di isolamento per bassa tensione progettato per impianti industriali con carichi ricchi di armoniche. Fornisce separazione galvanica tra primario e secondario e dispone di uno schermo elettrostatico collegato a terra per ridurre le interferenze e aumentare la sicurezza.
Tipo di prodotto
TRASFORMATORI DI ISOLAMENTO IN BASSA TENSIONE
Varianti
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available
Specifiche tecniche (estratto)
Il DYN11 K13 AL IP21 di Ortea Next è un trasformatore di isolamento per bassa tensione progettato per impianti industriali con carichi ricchi di armoniche. Fornisce separazione galvanica tra primario e secondario e dispone di uno schermo elettrostatico collegato a terra per ridurre le interferenze e aumentare la sicurezza.
Tipo di prodotto
TRASFORMATORI DI ISOLAMENTO IN BASSA TENSIONE
Varianti
Part number: DYN11 K13 AL IP21 30 | Power: 30 kVA | In-rush current: 24 A | No-load losses: 350 W | Load losses: 850 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 40 | Power: 40 kVA | In-rush current: 15 A | No-load losses: 410 W | Load losses: 1000 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 50 | Power: 50 kVA | In-rush current: 15 A | No-load losses: 450 W | Load losses: 1080 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 63 | Power: 63 kVA | In-rush current: 15 A | No-load losses: 630 W | Load losses: 1150 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 70 | Power: 70 kVA | In-rush current: 15 A | No-load losses: 680 W | Load losses: 1210 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 80 | Power: 80 kVA | In-rush current: 15 A | No-load losses: 740 W | Load losses: 1320 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 90 | Power: 90 kVA | In-rush current: 13 A | No-load losses: 780 W | Load losses: 1380 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 100 | Power: 100 kVA | In-rush current: 13 A | No-load losses: 870 W | Load losses: 1520 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 110 | Power: 110 kVA | In-rush current: 13 A | No-load losses: 920 W | Load losses: 1640 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 125 | Power: 125 kVA | In-rush current: 13 A | No-load losses: 960 W | Load losses: 1880 W | Vcc %: 4 | Data Sheet: available
Part number: DYN11 K13 AL IP21 140 | Power: 140 kVA | In-rush current: 12 A | No-load losses: 1100 W | Load losses: 1980 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 160 | Power: 160 kVA | In-rush current: 11 A | No-load losses: 1200 W | Load losses: 2120 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 180 | Power: 180 kVA | In-rush current: 11 A | No-load losses: 1290 W | Load losses: 2280 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 200 | Power: 200 kVA | In-rush current: 10 A | No-load losses: 1430 W | Load losses: 2420 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 225 | Power: 225 kVA | In-rush current: 10 A | No-load losses: 1470 W | Load losses: 2620 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 250 | Power: 250 kVA | In-rush current: 10 A | No-load losses: 1620 W | Load losses: 2850 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 280 | Power: 280 kVA | In-rush current: 10 A | No-load losses: 1730 W | Load losses: 3180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 315 | Power: 315 kVA | In-rush current: 9 A | No-load losses: 1890 W | Load losses: 3600 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 350 | Power: 350 kVA | In-rush current: 9 A | No-load losses: 2100 W | Load losses: 4100 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 400 | Power: 400 kVA | In-rush current: 9 A | No-load losses: 2250 W | Load losses: 4530 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 500 | Power: 500 kVA | In-rush current: 8 A | No-load losses: 2780 W | Load losses: 5250 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 630 | Power: 630 kVA | In-rush current: 7 A | No-load losses: 3000 W | Load losses: 6180 W | Vcc %: 4
Part number: DYN11 K13 AL IP21 800 | Power: 800 kVA | In-rush current: 6 A | No-load losses: 4050 W | Load losses: 7180 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1000 | Power: 1000 kVA | In-rush current: 6 A | No-load losses: 4950 W | Load losses: 8450 W | Vcc %: 4.5
Part number: DYN11 K13 AL IP21 1250 | Power: 1250 kVA | In-rush current: 5 A | No-load losses: 6200 W | Load losses: 10400 W | Vcc %: 5
Part number: DYN11 K13 AL IP21 1600 | Power: 1600 kVA | In-rush current: 5 A | No-load losses: 7600 W | Load losses: 12250 W | Vcc %: 5 | Data Sheet: available
Specifiche tecniche (estratto)
- Frequenza: 50 Hz
- Fattore K: 13
- Tensione ingresso / uscita: 400 / 400 V
- Connessione avvolgimento primario: Triangolo
- Connessione avvolgimento secondario: Stella + N
- Gruppo vettoriale: Dyn11
- Materiale nucleo: Acciaio magnetico M270
- Materiale avvolgimento: Alluminio
- Schermo elettrostatico tra primario e secondario, messo a terra
- Temperatura ambiente max: 40 °C
- Classe isolamento / classe termica: H
- Livello di isolamento: 3
- Elevazione di temperatura: 125
- Altitudine max: 1000 m
- Classe ambientale - climatica - incendio: E1 - C1 - F0
- Installazione: Interna
- Grado di protezione: IP21
- Norme di riferimento: EN 60076 / IEC 61558 (quando applicabile)
